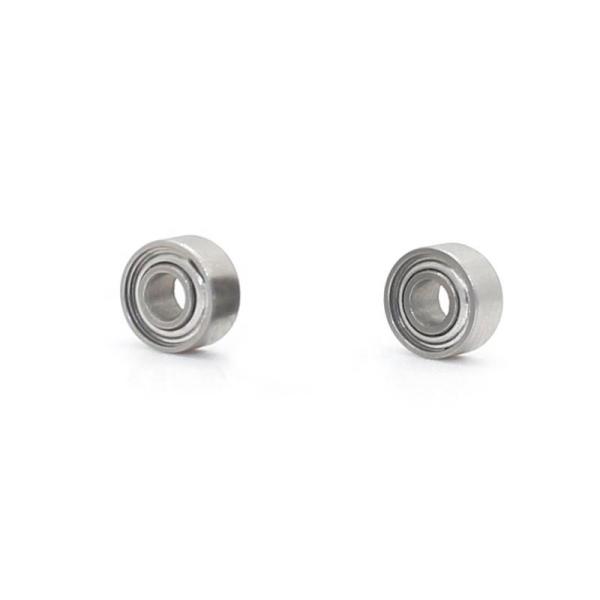

High quality Stainless bearings 682 2x5x2.3mm Miniature bearing
S682 ZZ Deep Groove Ball Bearings
Description: of Deep Groove Ball Bearing 682
The miniature stainless steel deep groove ball bearing is installed
on the shaft, within the axial clearance range of the bearing, it
can limit the axial displacement of the shaft or housing in two
directions, so it can be positioned axially in two directions. In
addition, this kind of bearing also has a certain self-aligning
ability. When the bearing is inclined 2'～10' relative to the shell
hole, it can still work normally, but it will have a certain impact
on the bearing life.
Stainless steel bearing materials mainly include 420, 440, 304, 316
Specifications: of Deep Groove Ball Bearing 682
Product Name | High quality Stainless bearings 682 2x5x2.3mm Miniature bearing
S682 ZZ Deep Groove Ball Bearings |
Brand | OEM |
Model No | 682 |
Sizes(mm)1 | 2x5x2.3mm |
Material | Chrome steel, Gcr15, stainless steel |
Sealed Type | ZZ metal shields |
Precision | P0,P6,P5 |
Clearance | C0 C2 C3 C4 |
Features | High Temperature Resistance,low noise, long life |
| 内径 (D) | 外径 (D) | 高 | 度 | 倒角(r) | 基本 动负荷 CrtNIBasic Dynamic | 基本 静负荷 CorlN)Bask Static | .扱.限转速 Limiting Speed | 型号 Reference |
| 开放型 (B) Open | 防尘盖型 (B1 ) Shield | 开放员 Open | 防尘蓋型 Shield | 润滑脂 Grase | 润滑剤 Oil | 开放型 Open | 防尘盖型 Shield |
| ,100( | Irpm |
| 3 | 1 | - | 0.05 | — | 80 | 23 | 130 | 150 | 681 | — |
| 1 | 3 | 1.5 | - | 0.05 | - | | | | | | - |
| 4 | 1.6 | - | 0.1 | — | 140 | 36 | 100 | 120 | 691 | — |
| 4 | 1.2 | 2 | 0.05 | 0.05 | 112 | 33 | 100 | 120 | 681X | 681XZZ |
| 1.5 | 5 | 2 | 2.6 | 0.15 | 0.15 | 237 | 69 | 85 | 100 | 691X | 691Xzz |
| 6 | 2.5 | 3 | 0.15 | 0.15 | 330 | 98 | 75 | 90 | 601X | 601 Xzz |
| 5 | 1.5 | 2.3 | 0.08 | 0.08 | 169 | 50 | 85 | 100 | 682 | 682zz |
| 5 | 2 | 2.5 | 0.1 | 0.1 | 169 | 50 | 85 | 100 | MR52 | MR52zz |
| 6 | 2.3 | 3 | 0.15 | 0.15 | 330 | 98 | 75 | 90 | 692 | 692zz |
| d | 6 | 2.5 | 2.5 | 0.15 | 0.15 | 330 | 98 | 75 | 90 | MR62 | MR62zz |
| 7 | 2.5 | 3 | 0.15 | 0.15 | 385 | 127 | 63 | 75 | MR72 | MR72zz |
| 7 | 2.8 | 3.5 | 0.15 | 0.15 | 385 | 127 | 63 | 75 | 602 | 602zz |
| 6 | 1.8 | 2.6 | 0.08 | 0.08 | 208 | 74 | 71 | 80 | 682X | 682Xzz |
| 2.5 | 7 | 2.5 | 3.5 | 0.15 | 0.15 | 385 | 127 | 63 | 75 | 692X | 692Xzz |
| 8 | 2.5 | - | 0.2 | — | 560 | 179 | 60 | 67 | MR82X | — |
| 8 | 2.8 | 4 | 0.15 | 0.15 | 550 | 175 | 60 | 71 | 602X | 602XZZ |
| 6 | 2 | 2.5 | 0.1 | 0.1 | 208 | 74 | 71 | 80 | MR63 | MR63zz |
| 7 | 2 | 3 | 0.1 | 0.1 | 310 | 111 | 63 | 75 | 683 | 683zz |
| 8 | 2.5 | - | 0.15 | - | 560 | 179 | 60 | 67 | MR83 | MR83zz |
| 8 | 3 | 4 | 0.15 | 0.15 | 560 | 179 | 60 | 67 | 693 | 693zz |
| 3 | 9 | 2.5 | 4 | 0.2 | 0.2 | 570 | 187 | 56 | 67 | MR93 | MR93ZZ |
| 9 | 3 | - | 0.15 | - | 570 | 187 | 56 | 67 | 603 | 603zz |
| 10 | 4 | 4 | 0.15 | 0.15 | 630 | 218 | 50 | 60 | 623 | 623zz |
| 13 | 5 | 5 | 0.2 | 0.2 | 1300 | 405 | 40 | 48 | 633 | 633zz |
| 7 | 2 | 2.5 | 0.1 | 0.1 | 310 | 115 | 60 | 67 | MR74 | MR74ZZ |
| 8 | 2 | 3 | 0.15 | 0.15 | 395 | 139 | 56 | 67 | MR84 | MR84zz |
| 9 | 2.5 | 4 | 0.1 | 0.1 | 640 | 225 | 53 | 63 | 684 | 684zz |
| 10 | 3 | 4 | 0.2 | 0.2 | 585 | 204 | 48 | 56 | MR104 | MR104ZZ |
| 4 | 11 | 4 | 4 | 0.15 | 0.15 | 960 | 345 | 48 | 56 | 694 | 694zz |
| 12 | 4 | 4 | 0.2 | 0.2 | 960 | 345 | 48 | 56 | 604 | 604zz |
| 13 | 5 | 5 | 0.2 | 0.2 | 1300 | 485 | 40 | 48 | 624 | 624zz |
| 16 | 5 | 5 | 0.3 | 0.3 | 1730 | 670 | 36 | 43 | 634 | 634zz |
Advantage:
1. With a High Load-Bearing Capacity
2. Low Noise and More Quiet
3. Long Life,Stable Performance and Durable
4. Have Low Rolling Resistance and Work in Sub-Zero Temperatures
Our Services:
1.We can offer a various kind of bearing with top quality.
2.Promptness in technical support pre- and after sales.
3.We can supply the samples (some for free).
4. OEM for our customers.
5.Prompt delivery time.
Applications:
