High Precision Smooth Thin Wall Ball Bearings 6700 Zz 6700 Rs
6700 2rs Deep Groove Ball Bearing
Description: of deep groove ball bearing 6700
material
We usually use bearing steel (GCr15), but many manufacturers only
use softer carbon steel materials, so our bearings have higher
hardness and longer service life.
Heat treatment
We have our own heat treatment plant and do not need to be
outsourced. We use a slower speed and more stable temperature to
effectively control the steel and increase the toughness and life
of the steel. Other small-scale bearing companies usually need to
outsource. Many outsourcing factories only strengthen the hardness
of the bearing surface due to cost factors, but the hardness inside
is not enough, which is the reason why many bad bearings are easy
to crack.
Precision
Our bearings can be controlled at a height accuracy of 0~-0.004mm,
fast speed and smoothness.
Multiple grinding process
We grind the bearing many times, but others may grind it only once,
so the chamfer of our bearing is very smooth.
In conclusion
We use high-quality materials and multiple grinding processes, so
our bearings have the characteristics of high speed, low noise,
high precision and long life
Specifications: of deep groove ball bearing 6700
Product Name | High Precision Smooth Thin Wall Ball Bearings 6700 Zz 6700 Rs 6700
2rs |
Brand | Deep dream&OEM |
Model No | 6700 |
Sizes(mm) | 10x15x4mm |
Material | Chrome Steel, Bearing steel; GCr15; carbon steel, brass |

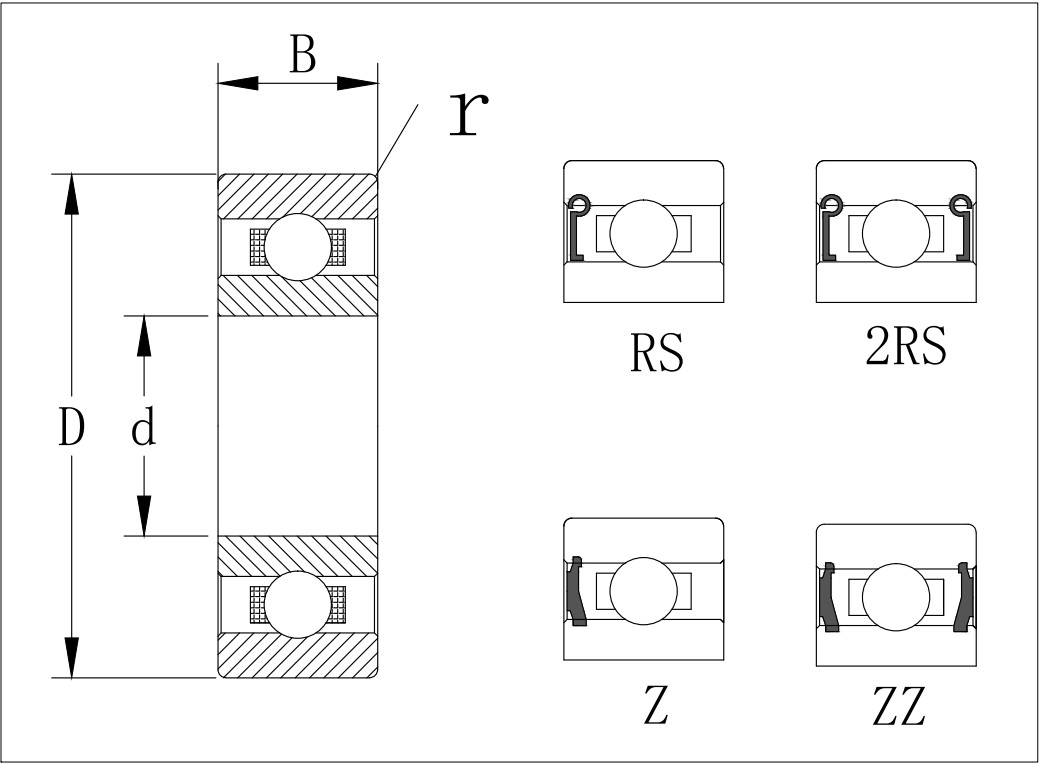

Sealed Type | 2RS rubber seals/ ZZ metal shields/Open |
Precision | P0, P5, P6 |
Clearance | C0, C2, C3, C4 |
Packing | Original Package |
| Model No | Size(ID*OD*B) | Dynamic load rating Cr(KN) | Static load rating Cor(KN) | Weight(kg) |
| 6700 | 10*15*3mm | 0.85 | 0.44 | 0.0015 |
| 6701 | 12*18*4mm | 0.92 | 0.053 | 0.003 |
| 6702 | 15*21*4mm | 0.93 | 0.58 | 0.004 |
| 6703 | 17*23*4mm | 0.99 | 0.66 | 0.005 |
| 6704 | 20*27*4mm | 1.05 | 0.73 | 0.006 |
| 6705 | 25*32*4mm | 1.10 | 0.84 | 0.006 |
| 6706 | 30*37*4mm | 1.15 | 0.95 | 0.008 |
| 6707 | 35*44*5mm | | | 0.015 |
Advantage:
1. High speed, high precision
2. Long service life
3. Low noise and good performance
Why Choose Us:
1. High speed, High Precision, Low Noise, Long Service Life
2. Widely used
3. Large Inventories
4. High Quality and Competitive Prices
5. Various Brands
6. OEM is supported
Applications:
Widely used in automobiles, household appliances, machine tools,
motors, pumps, agricultural machinery, textile machinery and many
other fields.
FAQ
1. who are we?
We are based in Shaanxi, China, start from 2019,sell to North
America(17.00%),Eastern Asia(15.00%),Domestic
Market(12.00%),Eastern Europe(10.00%),Western Europe(10.00%),South
Asia(5.00%),Southeast Asia(5.00%),South America(5.00%),Northern
Europe(5.00%),Oceania(5.00%),Mid East(4.00%),Southern
Europe(3.00%),Africa(2.00%),Central America(2.00%). There are total
about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
deep groove ball bearing,needle rollerbearing,bearings, pillow
block bearing,tapered roller bearing
4. why should you buy from us not from other suppliers?
Our company is located in Xi'An, China. With advanced science and technology R&D team, strong
marketing and financial support, sound after-sales service,
professional engineers, we will supply you goods with high quality
and good service.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,HKD,CNY;
Accepted Payment Type: T/T,PayPal,Western Union;
Language Spoken:English,Chinese
