High Quality Pillow Blocks Bearings UCFL207 Bearing Pillow Blocks
Description: of Bearing Pillow Blocks
Insert spherical bearings with housings are bearing units that
combine rolling bearings with housings. Outer spherical bearings
are mostly made of spherical surfaces, and are installed together
with imported bearing housings with spherical inner holes. The
outer spherical bearing has various structures, a wide range of
uses, and is interchangeable.
At the same time, these bearings are also designed with a certain
degree of alignment, easy to install, and have a double-structured
sealing device that can work in harsh environments. Bearing
housings are usually cast. Commonly used seats include vertical
seat (P), square seat (F), boss square seat (FS), boss circular
seat (FC), rhombus seat (FL), ring seat (C), slider seat (T ) and
more.
Specifications: of Bearing Pillow Blocks
Product Name | High quality Bearing Pillow Blocks |
Brand | Deep dream&OEM |
Model No | UCFL207 |
Material | Chrome Steel, Bearing steel; GCr15; carbon steel, brass |
Sealed Type | 2RS rubber seals/ ZZ metal shields/Open |
Precision | P0 |
Clearance | C0, C2, C3, C4 |
Usage | Used for Mining, metallurgy, agriculture, chemical industry,
textile, printing and dyeing, conveying machinery. |
带座轴承型号

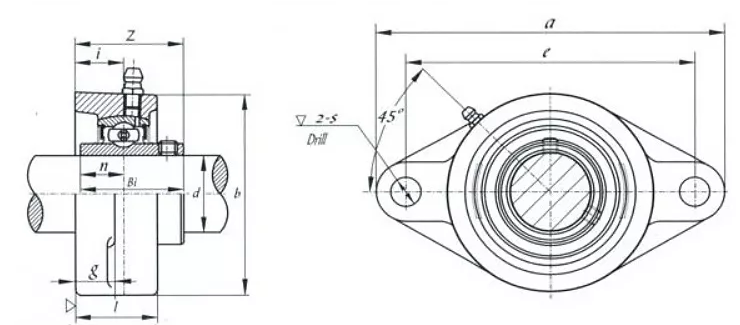

Bearing Unit No. | 轴径
Shaft Dia | 外 型尺寸 Dimensions(mm) | 重量 Weight (kg) |
| d |
| mm | a | e | b | | g | 1 | z | s | n | Bi |
| UCFL202 | 15 | 113 | 90 | 60 | 15 | 12 | 25.5 | 30.9 | 12 | 11.5 | 27.4 | 0.42 |
| UCFL203 | 17 | 113 | 90 | 60 | 15 | 12 | 25.5 | 30.3 | 12 | 11.5 | 27.4 | 0.41 |
| UCFL204 | 20 | 113 | 90 | 60 | 15 | 12 | 25.5 | 33.7 | 12 | 12.3 | 31 | 0.48 |
| UCFL205 | 25 | 130 | 99 | 68 | 16 | 14 | 27 | 35.8 | 16 | 143 | 34.1 | 0.6 |
| UCFL206 | 30 | 148 | 117 | 80 | 18 | 14 | 31 | 40.2 | 16 | 15.9 | 38.1 | 0.98 |
| UCFL207 | 35 | 161 | 130 | 90 | 19 | 16 | 34 | 44.4 | 16 | 17.5 | 42.3 | 131 |
| UCFL208 | 40 | 175 | 144 | 100 | 21 | 16 | 36 | 51.2 | 16 | 19 | 49.2 | 1.53 |
| UCFL209 | 45 | 188 | 148 | 108 | 22 | 18 | 38 | 52.2 | 19 | 19 | 49.2 | 1.68 |
| UCFL210 | 50 | 197 | 157 | 115 | 22 | 18 | 40 | 54.6 | 19 | 19 | 51.6 | 1.88 |
| UCFL211 | 55 | 224 | 184 | 130 | 25 | 20 | 43 | 58.4 | 19 | 222 | 55.6 | 3.1 |
| UCFL212 | 60 | 250 | 202 | 140 | 29 | 20 | 48 | 68.7 | 23 | 25.4 | 65.1 | 4 |
| UCFL213 | 65 | 258 | 210 | 155 | 30 | 24 | 50 | 69.7 | 23 | 25.4 | 65.1 | 5 |
| UCFL214 | 70 | 265 | 216 | 160 | 31 | 24 | 54 | 75.4 | 23 | 30.2 | 74.6 | 5.6 |
| UCFL215 | 75 | 275 | 225 | 165 | 34 | 24 | 56 | 78.5 | 23 | 333 | 77.8 | 6.2 |
| UCFL216 | 80 | 290 | 233 | 180 | 34 | 24 | 58 | 83.3 | 25 | 33.3 | 82.6 | 8.2 |
| UCFL217 | 85 | 305 | 248 | 190 | 36 | 26 | 63 | 87.6 | 25 | 34.1 | 85.7 | 9.26 |
| UCFL218 | 90 | 320 | 265 | 205 | 40 | 26 | 68 | 96.3 | 25 | 39.7 | 96 | 11.73 |
Why Choose Us:
1. High speed, High Precision, Low Noise, Long Service Life
2. Widely used
3. Large Inventories
4. High Quality and Competitive Prices
5. Various Brands
6. OEM is supported
Applications:
Papermaking machinery, speed reducer, railway vehicle axle, gear
box bearing, rolling mill rolling mill rolls, crusher, vibrating
screen, printing machinery, woodworking machinery, all kinds of
industry.
FAQ
1. who are we?
We are based in Shaanxi, China, start from 2019,sell to North
America(17.00%),Eastern Asia(15.00%),Domestic
Market(12.00%),Eastern Europe(10.00%),Western Europe(10.00%),South
Asia(5.00%),Southeast Asia(5.00%),South America(5.00%),Northern
Europe(5.00%),Oceania(5.00%),Mid East(4.00%),Southern
Europe(3.00%),Africa(2.00%),Central America(2.00%). There are total
about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
deep groove ball bearing,needle rollerbearing,bearings, pillow
block bearing,tapered roller bearing
4. why should you buy from us not from other suppliers?
Our company is located in Xi'An, China. With advanced science and technology R&D team, strong
marketing and financial support, sound after-sales service,
professional engineers, we will supply you goods with high quality
and good service.
