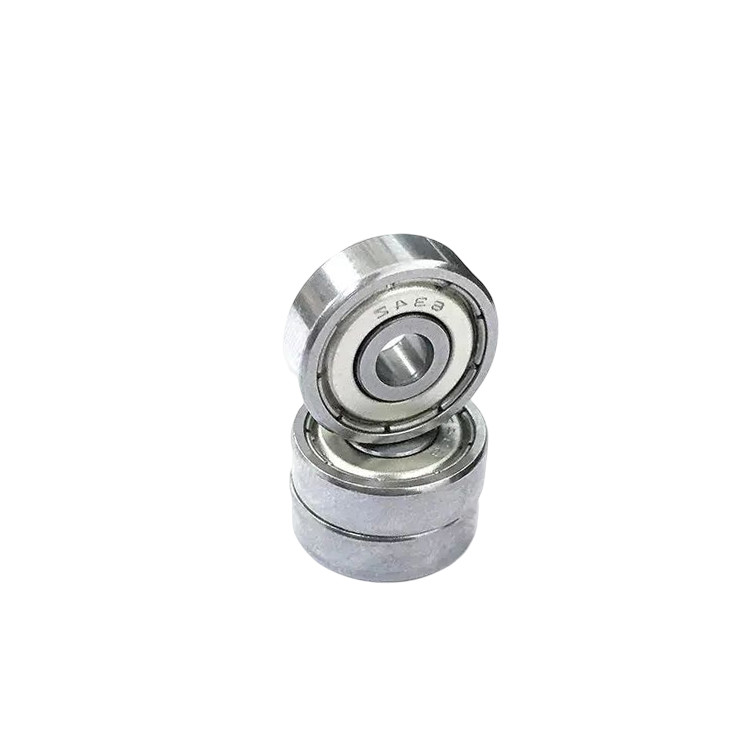

Mechanical Chrome Steel Deep Groove Ball Bearings 634 634 ZZ Size
4*16*5mm
Description: of Deep Groove Ball Bearing 634
1. The single row deep groove ball bearings common type is with the
shield.
2. The deep groove ball bearings consisit of 2 machined and
polished groovedraceways(inner&outer rings), guilding a number
of appropriate balls, seperated by a cage.
3. This type bearings mainly take the radial load as well as
moderate axial load.
4. There are many executions and sizes for deep groove ball
bearings. And they are used in a wide variety of applications.
5. The Deep groove ball bearings are non-separable, suitable for
high and even very high speed and are robust in operation,
requiring little maintenance.
Specifications: of Deep Groove Ball Bearing 634
| Product Name | Mechanical Chrome Steel Deep Groove Ball Bearings 634 634 ZZ Size
4*16*5mm |
| Brand | OEM |
| Model No | 634 |
| Sizes(mm)1 | 4*16*5mm |
| Material | Chrome steel, Gcr15 |
| Sealed Type | ZZ (Steel Shield) 2RS (Rubber Seal) |
| Precision | P0,P6,P5 |
| Clearance | C0 C2 C3 C4 |
| Features | High Temperature Resistance,low noise, long life |
| 内径 (D) | 外径 (D) | 高 | 度 | 倒角(r) | 基本 动负荷 CrtNIBasic Dynamic | 基本 静负荷 CorlN)Bask Static | .扱.限转速 Limiting Speed | 型号 Reference |
| 开放型 (B) Open | 防尘盖型 (B1 ) Shield | 开放员 Open | 防尘蓋型 Shield | 润滑脂 Grase | 润滑剤 Oil | 开放型 Open | 防尘盖型 Shield |
| ,100( | Irpm |
| 3 | 1 | - | 0.05 | — | 80 | 23 | 130 | 150 | 681 | — |
| 1 | 3 | 1.5 | - | 0.05 | - | | | | | | - |
| 4 | 1.6 | - | 0.1 | — | 140 | 36 | 100 | 120 | 691 | — |
| 4 | 1.2 | 2 | 0.05 | 0.05 | 112 | 33 | 100 | 120 | 681X | 681XZZ |
| 1.5 | 5 | 2 | 2.6 | 0.15 | 0.15 | 237 | 69 | 85 | 100 | 691X | 691Xzz |
| 6 | 2.5 | 3 | 0.15 | 0.15 | 330 | 98 | 75 | 90 | 601X | 601 Xzz |
| 5 | 1.5 | 2.3 | 0.08 | 0.08 | 169 | 50 | 85 | 100 | 682 | 682zz |
| 5 | 2 | 2.5 | 0.1 | 0.1 | 169 | 50 | 85 | 100 | MR52 | MR52zz |
| 6 | 2.3 | 3 | 0.15 | 0.15 | 330 | 98 | 75 | 90 | 692 | 692zz |
| d | 6 | 2.5 | 2.5 | 0.15 | 0.15 | 330 | 98 | 75 | 90 | MR62 | MR62zz |
| 7 | 2.5 | 3 | 0.15 | 0.15 | 385 | 127 | 63 | 75 | MR72 | MR72zz |
| 7 | 2.8 | 3.5 | 0.15 | 0.15 | 385 | 127 | 63 | 75 | 602 | 602zz |
| 6 | 1.8 | 2.6 | 0.08 | 0.08 | 208 | 74 | 71 | 80 | 682X | 682Xzz |
| 2.5 | 7 | 2.5 | 3.5 | 0.15 | 0.15 | 385 | 127 | 63 | 75 | 692X | 692Xzz |
| 8 | 2.5 | - | 0.2 | — | 560 | 179 | 60 | 67 | MR82X | — |
| 8 | 2.8 | 4 | 0.15 | 0.15 | 550 | 175 | 60 | 71 | 602X | 602XZZ |
| 6 | 2 | 2.5 | 0.1 | 0.1 | 208 | 74 | 71 | 80 | MR63 | MR63zz |
| 7 | 2 | 3 | 0.1 | 0.1 | 310 | 111 | 63 | 75 | 683 | 683zz |
| 8 | 2.5 | - | 0.15 | - | 560 | 179 | 60 | 67 | MR83 | MR83zz |
| 8 | 3 | 4 | 0.15 | 0.15 | 560 | 179 | 60 | 67 | 693 | 693zz |
| 3 | 9 | 2.5 | 4 | 0.2 | 0.2 | 570 | 187 | 56 | 67 | MR93 | MR93ZZ |
| 9 | 3 | - | 0.15 | - | 570 | 187 | 56 | 67 | 603 | 603zz |
| 10 | 4 | 4 | 0.15 | 0.15 | 630 | 218 | 50 | 60 | 623 | 623zz |
| 13 | 5 | 5 | 0.2 | 0.2 | 1300 | 405 | 40 | 48 | 633 | 633zz |
| 7 | 2 | 2.5 | 0.1 | 0.1 | 310 | 115 | 60 | 67 | MR74 | MR74ZZ |
| 8 | 2 | 3 | 0.15 | 0.15 | 395 | 139 | 56 | 67 | MR84 | MR84zz |
| 9 | 2.5 | 4 | 0.1 | 0.1 | 640 | 225 | 53 | 63 | 684 | 684zz |
| 10 | 3 | 4 | 0.2 | 0.2 | 585 | 204 | 48 | 56 | MR104 | MR104ZZ |
| 4 | 11 | 4 | 4 | 0.15 | 0.15 | 960 | 345 | 48 | 56 | 694 | 694zz |
| 12 | 4 | 4 | 0.2 | 0.2 | 960 | 345 | 48 | 56 | 604 | 604zz |
| 13 | 5 | 5 | 0.2 | 0.2 | 1300 | 485 | 40 | 48 | 624 | 624zz |
| 16 | 5 | 5 | 0.3 | 0.3 | 1730 | 670 | 36 | 43 | 634 | 634zz |
Advantage:
1. With a High Load-Bearing Capacity
2. Low Noise and More Quiet
3. Long Life,Stable Performance and Durable
4. Have Low Rolling Resistance and Work in Sub-Zero Temperatures
Our Services:
1.We can offer a various kind of bearing with top quality.
2.Promptness in technical support pre- and after sales.
3.We can supply the samples (some for free).
4. OEM for our customers.
5.Prompt delivery time.
Applications:
Examples include gyroscopes, anemometers, flow meters,
micro-gearboxes, small motors, and radio-controlled models.
