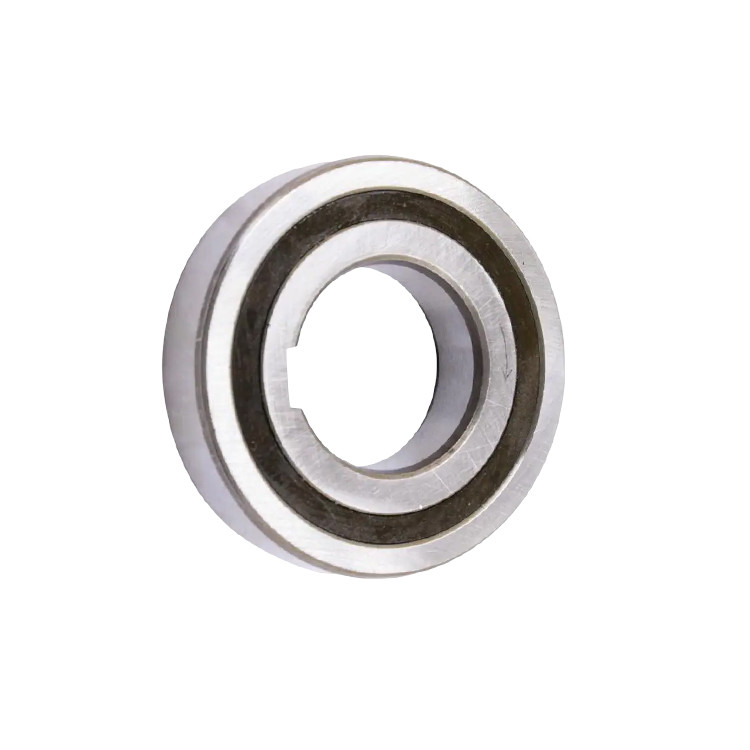

Deep Groove Ball Bearing 8*22*9mm One Way Clutch Bearing CSK8 CSK8P
CSK8PP With Keyway
Description: of deep groove ball bearing CSK8
Types CSK..P and CSK..PP are sprag type freewheels integrated into
62. series ball bearings (except size 40). They are bearing
supported, delivered grease lubricated and protected against dust
of more than 0,3 mm.The use of additional “nylos” type seals is
recommended especially when the working temperature exceeds 50°C.
Oil bath lubrication is also possible.In addition to the basic CSK
model, type CSK..P features a keyway on the inner race. For this
reason it can be keyed to a shaft to k6 tolerance. The outer race
must still be pressed into a rigid steel housing to N6
tolerance.CSK..PP features a keyway on both the inner and outer
race. The recommended mounting tolerances are h6 on the shaft and
H6 in a rigid housing. Please contact us when either the ambient or
the operating temperature is not within the range +5°C to +60°C.
Specifications: of deep groove ball bearing CSK8
PRODUCT NAME | Deep Groove Ball Bearing 8*22*9mm One Way Clutch Bearing CSK8 CSK8P
CSK8PP With Keyway | MODEL NUMBER | CSK8 | Precision Grade | P0 P6 P5 P4 P2 | Bearing Seal | 2RS 2Z OPEN | Dimensions | 8*22*9mm | MATERIAL | Chrome Steel GCR15 | CAGE MATERIAL | Steel or nylon | Our market | Our products have been exported to the Mainland China, Europe,
Africa,
South America, North America |
|
| TYPE | keyway | Dimensions(mm) | Nominal torgue | weight |
| GERMANY | JAPAN AND OTHER | d | D | B | N.m | KG |
| CSK8 | BB8 KK8 OW8 | P | PP | 8 | 22 | 9 | 2.5 | 0.015 |
| CSK10 | BB10 KK10 OW10 | P | PP | 10 | 30 | 9 | 5 | 0.032 |
| CSK12 | BB12 KK12 OW12 | P | PP | 12 | 32 | 10 | 10 | 0.04 |
| CSK15 | BB15 KK15 OW15 | P | PP | 15 | 35 | 11 | 30 | 0.05 |
| CSK17 | BB17 KK17 OW17 | P | PP | 17 | 40 | 12 | 48 | 0.07 |
| CSK20 | BB20 KK20 OW20 | P | PP | 20 | 47 | 14 | 60 | 0.11 |
| CSK25 | BB25 KK25 OW25 | P | PP | 25 | 52 | 15 | 80 | 0.14 |
| CSK30 | BB30 KK30 OW30 | P | PP | 30 | 62 | 16 | 100 | 0.21 |
| CSK35 | BB35 KK35 OW35 | P | PP | 35 | 72 | 17 | 123 | 0.30 |
| CSK40 | BB40 KK40 OW40 | P | PP | 40 | 78 | 22 | 260 | 0.50 |
Why Choose Us:
1. High speed, High Precision, Low Noise, Long Service Life
2. Widely used
3. Large Inventories
4. High Quality and Competitive Prices
5. Various Brands
6. OEM is supported
Application of Deep groove ball bearing :
One side of the inner ring or the outer ring can be fixed by glue.
If both sides of the inner and outer rings are fixed with glue, the
function will be reduced. If you do not want to use the tight
fitting method, you can use CSK-P series C3 bearing to install the
effect. Widely used in printing machinery, packaging machinery,
food machinery, electric drums, electric motorcycles, fitness
equipment, reducers and test equipment, belt conveyors, lifting
cranes, textile machinery and other equipment, greatly improving
the operation of equipment Safety and reliability.
