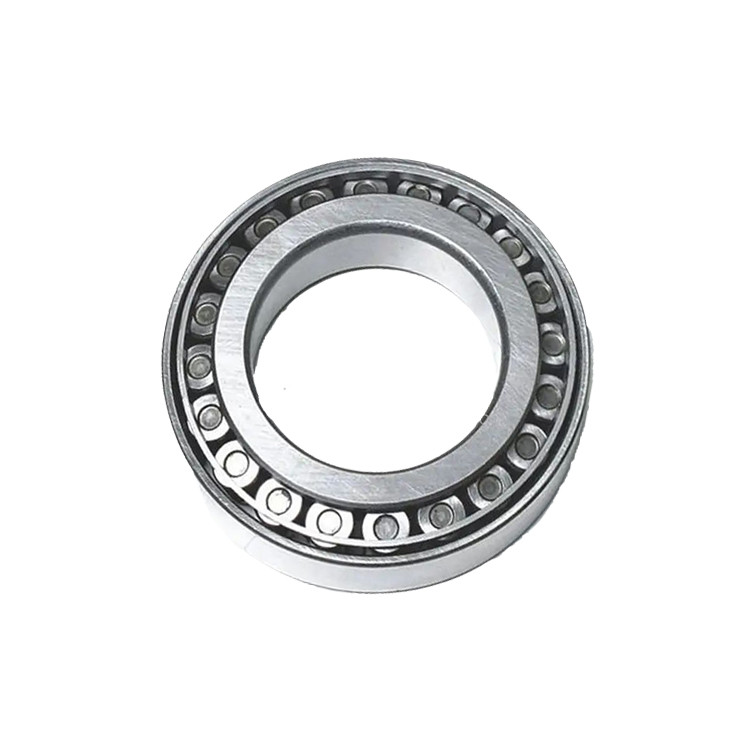

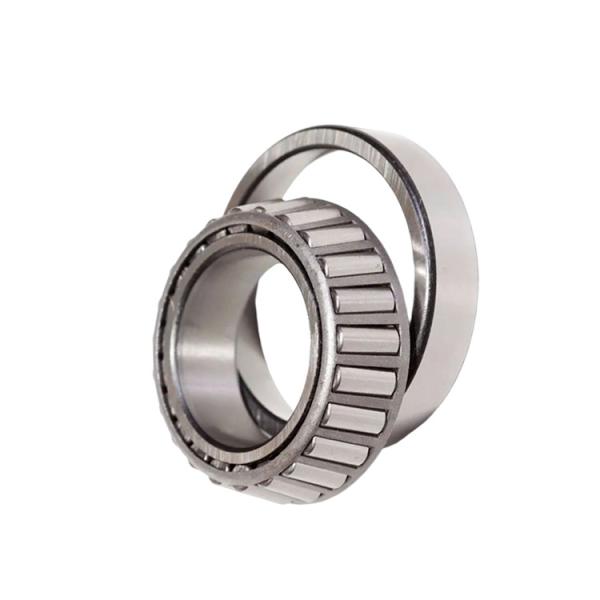

Original Tapered Roller Bearing 32222 7522E P0 P6 Size 110*200*53mm
Description: of Tapered Ball Bearing 32222
Tapered Roller Bearings could carry combinations of large radial
and thrust loads. The axial load carrying capacity of the bearings
is largely determined by the contact angle. The larger the angle,
the higher the axial load capacity. back pairs so that the axial
forces can be supported equally in either direction.
Pairs of tapered roller bearings are used in car and vehicle wheel
bearings where they must handle simultaneously with large vertical
(radial) and horizontal (axial) forces.
Specifications: of Tapered Ball Bearing 32222
Product Name | Original Tapered Roller Bearing 32222 7522E P0 P6 Size 110*200*53mm |
Brand | Deep dream&OEM |
Model No | 32222 |
Sizes(mm) | 110*200*53mm |
Material | Chrome Steel, Bearing steel; GCr15; carbon steel, brass |
Sealed Type | 2RS rubber seals/ ZZ metal shields/Open |
Precision | P0 |
Clearance | C0, C2, C3, C4 |
Characteristic | Easy to replace and install, well sealed, suitable for high dust
environment, multiple fixing methods are optional, and multiple designs are used. |
Bearing | Principal Dimensions (mm) | Mass | ||
No. | d | D | B | kg |
32203 | 17 | 40 | 16 | 0.105 |
32204 | 20 | 47 | 18 | 0.151 |
32205 | 25 | 52 | 18 | 0.19 |
32206 | 30 | 62 | 20 | 0.3 |
32207 | 35 | 72 | 23 | 0.44 |
32208 | 40 | 80 | 23 | 0.53 |
32209 | 45 | 85 | 23 | 0.58 |
32210 | 50 | 90 | 23 | 0.61 |
32211 | 55 | 100 | 25 | 0.83 |
32212 | 60 | 110 | 28 | 1.15 |
32213 | 65 | 120 | 31 | 1.5 |
32214 | 70 | 125 | 31 | 1.6 |
32215 | 75 | 130 | 31 | 1.7 |
32216 | 80 | 140 | 33 | 2.05 |
32217 | 85 | 150 | 36 | 2.6 |
32218 | 90 | 160 | 40 | 3.35 |
32219 | 95 | 170 | 43 | 4.05 |
32220 | 100 | 180 | 46 | 4.9 |
32221 | 105 | 190 | 50 | 6 |
32222 | 110 | 200 | 53 | 7.1 |
32224 | 120 | 215 | 58 | 9.15 |
32226 | 130 | 230 | 64 | 11.5 |
32228 | 140 | 250 | 68 | 14.5 |
32230 | 150 | 270 | 73 | 17.5 |
Why Choose Us:
1. High speed, High Precision, Low Noise, Long Service Life
2. Widely used
3. Large Inventories
4. High Quality and Competitive Prices
5. Various Brands
6. OEM is supported
Applications:
Tapered roller bearings are widely applied to machine tool spindles, gear reduction units, automotive transaxles, transmissions, rolling mill, mining, metallurgical industry, plastic machinery, home appliances, electric motors, pumps, machinery and other automotive components.
