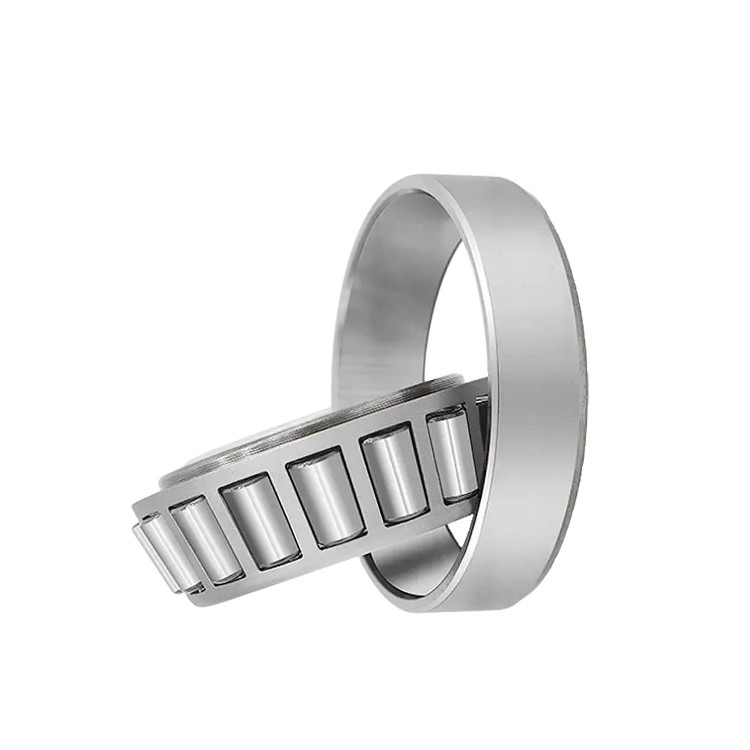

High Quality Auto Bearing 32221 Tapered Roller Bearing 105x190x53mm
Description: of Tapered Ball Bearing 32221
Taper roller bearings are separable bearings, inner and outer rings
have a tapered raceway. This kind of bearing according to the
number of columns loaded roller into single row, double row and
four-row tapered roller bearings, such as different types of
structures. Single row tapered roller bearings can withstand the
radial load and single direction axial load. When the bearing
radial load, will produce an axial force component, so when need
another affordable bearing axial force in the opposite direction to
be balanced.
The cone angle of the outer ring raceway of single row tapered
roller bearing can be combined with axial load and radial load at
the same time between 10°~19°. The larger the cone angle, the
greater the ability to withstand axial load. Bearing with large
cone angle, the rear code plus b, the cone angle between the
25°~29°, it can withstand the larger axial load. In addition,
single row tapered roller bearings can adjust the size of the
clearance during installation.
Specifications: of Tapered Ball Bearing 32221
Product Name | High Quality Auto Bearing 32221 Tapered Roller Bearing 105x190x53mm |
Brand | Deep dream&OEM |
Model No | 32221 |
Sizes(mm) | 105x190x53mm |
Material | Chrome Steel, Bearing steel; GCr15; carbon steel, brass |
Sealed Type | 2RS rubber seals/ ZZ metal shields/Open |
Precision | P0 |
Clearance | C0, C2, C3, C4 |
Characteristic | Easy to replace and install, well sealed, suitable for high dust
environment, multiple fixing methods are optional, and multiple
designs are used. |
Bearing | Principal Dimensions (mm) | Mass |
No. | d | D | B | kg |
32203 | 17 | 40 | 16 | 0.105 |
32204 | 20 | 47 | 18 | 0.151 |
32205 | 25 | 52 | 18 | 0.19 |
32206 | 30 | 62 | 20 | 0.3 |
32207 | 35 | 72 | 23 | 0.44 |
32208 | 40 | 80 | 23 | 0.53 |
32209 | 45 | 85 | 23 | 0.58 |
32210 | 50 | 90 | 23 | 0.61 |
32211 | 55 | 100 | 25 | 0.83 |
32212 | 60 | 110 | 28 | 1.15 |
32213 | 65 | 120 | 31 | 1.5 |
32214 | 70 | 125 | 31 | 1.6 |
32215 | 75 | 130 | 31 | 1.7 |
32216 | 80 | 140 | 33 | 2.05 |
32217 | 85 | 150 | 36 | 2.6 |
32218 | 90 | 160 | 40 | 3.35 |
32219 | 95 | 170 | 43 | 4.05 |
32220 | 100 | 180 | 46 | 4.9 |
32221 | 105 | 190 | 50 | 6 |
32222 | 110 | 200 | 53 | 7.1 |
32224 | 120 | 215 | 58 | 9.15 |
32226 | 130 | 230 | 64 | 11.5 |
32228 | 140 | 250 | 68 | 14.5 |
32230 | 150 | 270 | 73 | 17.5 |
Why Choose Us:
1. High speed, High Precision, Low Noise, Long Service Life
2. Widely used
3. Large Inventories
4. High Quality and Competitive Prices
5. Various Brands
6. OEM is supported
Applications:
Tapered roller bearings are widely applied to machine tool
spindles, gear reduction units, automotive transaxles,
transmissions, rolling mill, mining, metallurgical industry,
plastic machinery, home appliances, electric motors, pumps,
machinery and other automotive components.
