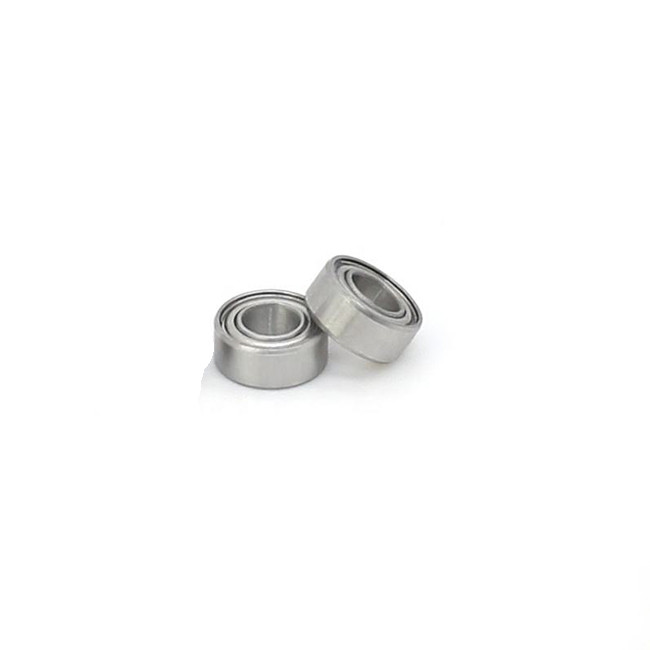

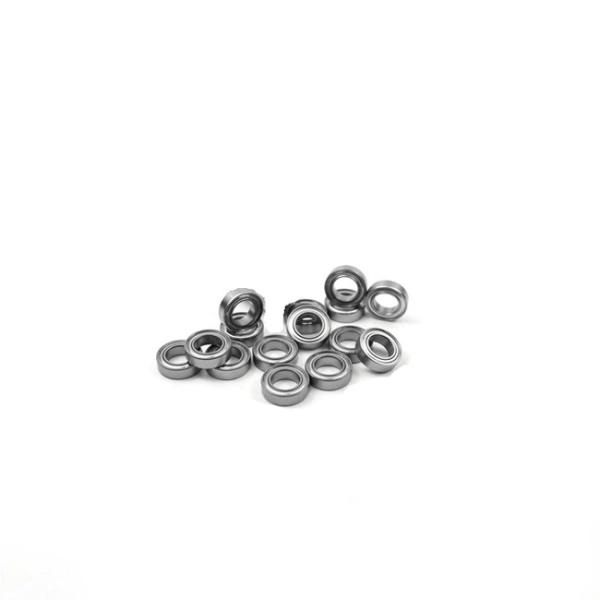

High Quality Miniature Deep Groove Ball Bearing MR63 3x6x2.5mm
Fishing Reel Bearing 440 Stainless Steel SMR 63 ZZ
Description: of Deep Groove Ball Bearing MR63
Miniature bearings, sometimes referred to as instrument bearings or
miniature bearings, are used in applications as diverse as
gyroscopes, anemometers, flow meters, miniature gearboxes, small
motors, and radio-controlled models. The outer rings of our chrome
steel miniature bearings are also available with flanges.
1. The most representative rolling bearing, widely used
2. The outer ring has a ring or flange bearing, which is convenient
for axial positioning and housing;
3. The maximum bearing size is the same as the standard bearing,
but there are grooves in the inner and outer rings, which increases
the number of balls and increases the rated load.
Specifications: of Deep Groove Ball Bearing MR63
Product Name | High quality miniature bearing MR63 3x6x2.5mm fishing reel bearing
440 stainless steel miniature ball bearing SMR63 ZZ |
Brand | OEM |
Model No | MR63 ZZ |
Sizes(mm) | 3x6x2.5mm |
Material | 440 Stainless steel |
Sealed Type | 2RS rubber seals/ ZZ metal shields/Open |
Precision | P0,P6,P5,P4 |
Clearance | C0 C2 C3 C4 |
Features | High Temperature Resistance,low noise, long life |
d(mm) | D(mm) | B(mm) | Bearing No. | Weight(g) |
3 | 6 | 2.5 | MR 63 ZZ | 1g |
3 | 8 | 3 | HYB MR 83 | 1g |
4 | 8 | 3 | HYB MR 84 | 1g |
4 | 9 | 2.5 | HYB 684 | 2g |
4 | 10 | 3 | HYB MR 104 | 2g |
4 | 11 | 4 | HYB 694 | 2g |
5 | 8 | 2 | HYB MR 85 | 1g |
5 | 10 | 3 | HYB MR 105 | 2g |
5 | 11 | 3 | HYB 685 | 2g |
5 | 11 | 4 | HYB MR 115 | 1g |
5 | 13 | 4 | HYB 695 | 3g |
6 | 10 | 2.5 | HYB MR 106 | 1g |
6 | 12 | 3 | HYB MR 126 | 2g |
| 6 | 12 | 4 | MR 126 ZZ | 2g |
6 | 13 | 3.5 | HYB 686 | 3g |
6 | 15 | 5 | HYB 696 | 4g |
7 | 14 | 3.5 | HYB 687 | 4g |
7 | 17 | 5 | HYB 697 | 6g |
8 | 12 | 2.5 | HYB MR 128 | 1g |
8 | 14 | 3.5 | HYB MR 148 | 3g |
Advantage:
1. With a High Load-Bearing Capacity
2. Low Noise and More Quiet
3. Long Life,Stable Performance and Durable
4. Have Low Rolling Resistance and Work in Sub-Zero Temperatures
Our Services:
1.We can offer a various kind of bearing with top quality.
2.Promptness in technical support pre- and after sales.
3.We can supply the samples (some for free).
4. OEM for our customers.
5.Prompt delivery time.
Applications:
The bearings can be used for transmission; instrumentation; motors;
appliances; internal combustion engines; transportation vehicles;
agricultural machinery; construction machinery; engineering
machinery; roller skate style; yo-yo; ceiling fan; motor;
skateboard; forklift; electric scooter; etc
