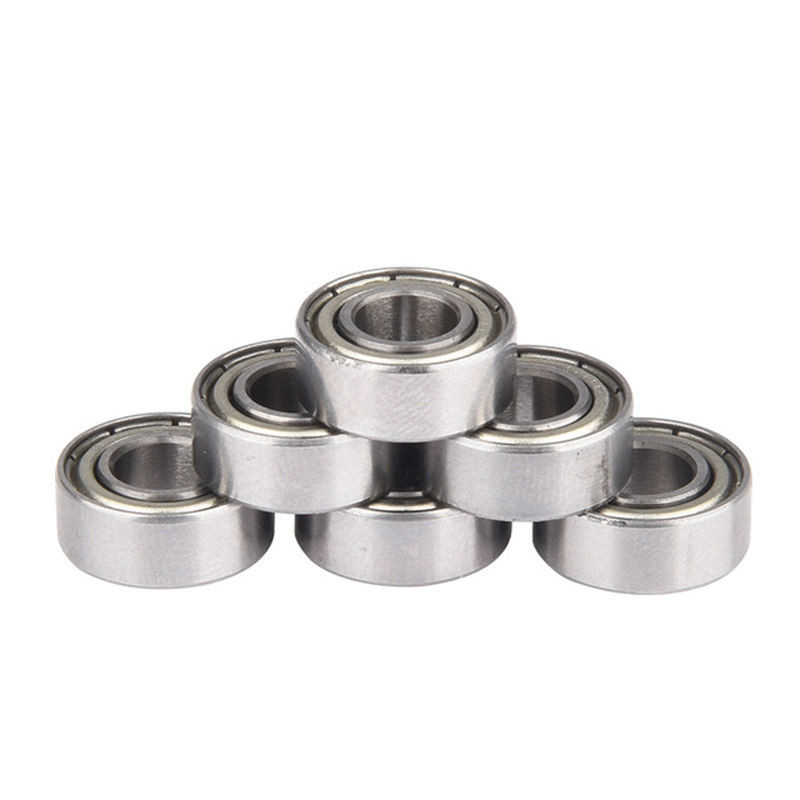

Miniature bearing 683 double-sided sealed deep groove ball bearing
683 ZZ 3*7*3mm
Description: of Deep Groove Ball Bearing 683
Miniature bearings, sometimes referred to as instrumentation
bearings or miniature bearings, are used in a variety of
applications. Our chrome steel miniature bearings are also
available with flanged outer rings. Most of our chrome steel
miniature bearings are open or have metal shrouds. Larger sizes
available with rubber or PTFE contacting seals or low friction
non-contacting rubber seals. Open bearings provide light oil
lubrication. Shielded or sealed bearings are usually provided with
grease lubrication, but shielded bearings can be supplied with
instrument oil for low speed, low friction applications. Thanks to
our in-house relubrication facilities, these miniature bearings can
be supplied with customer specified oil, grease or dry lubricant.
Specifications: of Deep Groove Ball Bearing 683
Product Name | Double sided sealed bearing 683 small ball bearing deep groove ball
miniature bearing 683 ZZ |
Brand | OEM |
Model No | 683 |
Sizes(mm)1 | 3*7*3(mm) |
Material | Chrome steel, Gcr15, stainless steel |
Sealed Type | ZZ (Steel Shield) 2RS (Rubber Seal) |
Precision | P0,P6,P5 |
Clearance | C0 C2 C3 C4 |
Features | High Temperature Resistance,low noise, long life |
| 内径 (D) | 外径 (D) | 高 | 度 | 倒角(r) | 基本 动负荷 CrtNIBasic Dynamic | 基本 静负荷 CorlN)Bask Static | .扱.限转速 Limiting Speed | 型号 Reference |
| 开放型 (B) Open | 防尘盖型 (B1 ) Shield | 开放员 Open | 防尘蓋型 Shield | 润滑脂 Grase | 润滑剤 Oil | 开放型 Open | 防尘盖型 Shield |
| ,100( | Irpm |
| 3 | 1 | - | 0.05 | — | 80 | 23 | 130 | 150 | 681 | — |
| 1 | 3 | 1.5 | - | 0.05 | - | | | | | | - |
| 4 | 1.6 | - | 0.1 | — | 140 | 36 | 100 | 120 | 691 | — |
| 4 | 1.2 | 2 | 0.05 | 0.05 | 112 | 33 | 100 | 120 | 681X | 681XZZ |
| 1.5 | 5 | 2 | 2.6 | 0.15 | 0.15 | 237 | 69 | 85 | 100 | 691X | 691Xzz |
| 6 | 2.5 | 3 | 0.15 | 0.15 | 330 | 98 | 75 | 90 | 601X | 601 Xzz |
| 5 | 1.5 | 2.3 | 0.08 | 0.08 | 169 | 50 | 85 | 100 | 682 | 682zz |
| 5 | 2 | 2.5 | 0.1 | 0.1 | 169 | 50 | 85 | 100 | MR52 | MR52zz |
| 6 | 2.3 | 3 | 0.15 | 0.15 | 330 | 98 | 75 | 90 | 692 | 692zz |
| d | 6 | 2.5 | 2.5 | 0.15 | 0.15 | 330 | 98 | 75 | 90 | MR62 | MR62zz |
| 7 | 2.5 | 3 | 0.15 | 0.15 | 385 | 127 | 63 | 75 | MR72 | MR72zz |
| 7 | 2.8 | 3.5 | 0.15 | 0.15 | 385 | 127 | 63 | 75 | 602 | 602zz |
| 6 | 1.8 | 2.6 | 0.08 | 0.08 | 208 | 74 | 71 | 80 | 682X | 682Xzz |
| 2.5 | 7 | 2.5 | 3.5 | 0.15 | 0.15 | 385 | 127 | 63 | 75 | 692X | 692Xzz |
| 8 | 2.5 | - | 0.2 | — | 560 | 179 | 60 | 67 | MR82X | — |
| 8 | 2.8 | 4 | 0.15 | 0.15 | 550 | 175 | 60 | 71 | 602X | 602XZZ |
| 6 | 2 | 2.5 | 0.1 | 0.1 | 208 | 74 | 71 | 80 | MR63 | MR63zz |
| 7 | 2 | 3 | 0.1 | 0.1 | 310 | 111 | 63 | 75 | 683 | 683zz |
| 8 | 2.5 | - | 0.15 | - | 560 | 179 | 60 | 67 | MR83 | MR83zz |
| 8 | 3 | 4 | 0.15 | 0.15 | 560 | 179 | 60 | 67 | 693 | 693zz |
| 3 | 9 | 2.5 | 4 | 0.2 | 0.2 | 570 | 187 | 56 | 67 | MR93 | MR93ZZ |
| 9 | 3 | - | 0.15 | - | 570 | 187 | 56 | 67 | 603 | 603zz |
| 10 | 4 | 4 | 0.15 | 0.15 | 630 | 218 | 50 | 60 | 623 | 623zz |
| 13 | 5 | 5 | 0.2 | 0.2 | 1300 | 405 | 40 | 48 | 633 | 633zz |
| 7 | 2 | 2.5 | 0.1 | 0.1 | 310 | 115 | 60 | 67 | MR74 | MR74ZZ |
| 8 | 2 | 3 | 0.15 | 0.15 | 395 | 139 | 56 | 67 | MR84 | MR84zz |
| 9 | 2.5 | 4 | 0.1 | 0.1 | 640 | 225 | 53 | 63 | 684 | 684zz |
| 10 | 3 | 4 | 0.2 | 0.2 | 585 | 204 | 48 | 56 | MR104 | MR104ZZ |
| 4 | 11 | 4 | 4 | 0.15 | 0.15 | 960 | 345 | 48 | 56 | 694 | 694zz |
| 12 | 4 | 4 | 0.2 | 0.2 | 960 | 345 | 48 | 56 | 604 | 604zz |
| 13 | 5 | 5 | 0.2 | 0.2 | 1300 | 485 | 40 | 48 | 624 | 624zz |
| 16 | 5 | 5 | 0.3 | 0.3 | 1730 | 670 | 36 | 43 | 634 | 634zz |
Advantage: of Deep Groove Ball Bearing 683
1. With a High Load-Bearing Capacity
2. Low Noise and More Quiet
3. Long Life,Stable Performance and Durable
4. Have Low Rolling Resistance and Work in Sub-Zero Temperatures
Our Services: of Deep Groove Ball Bearing 683
1.We can offer a various kind of bearing with top quality.
2.Promptness in technical support pre- and after sales.
3.We can supply the samples (some for free).
4. OEM for our customers.
5.Prompt delivery time.
Applications: of Deep Groove Ball Bearing 683
Examples include gyroscopes, anemometers, flow meters,
micro-gearboxes, small motors, and radio-controlled models.
FAQ
1. who are we?
We are based in Shaanxi, China, start from 2019,sell to North
America(17.00%),Eastern Asia(15.00%),Domestic
Market(12.00%),Eastern Europe(10.00%),Western Europe(10.00%),South
Asia(5.00%),Southeast Asia(5.00%),South America(5.00%),Northern
Europe(5.00%),Oceania(5.00%),Mid East(4.00%),Southern
Europe(3.00%),Africa(2.00%),Central America(2.00%). There are total
about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
deep groove ball bearing,needle rollerbearing,bearings, pillow
block bearing,tapered roller bearing
4. why should you buy from us not from other suppliers?
Our company is located in Xi'An, China. With advanced science and technology R&D team, strong
marketing and financial support, sound after-sales service,
professional engineers, we will supply you goods with high quality
and good service.
