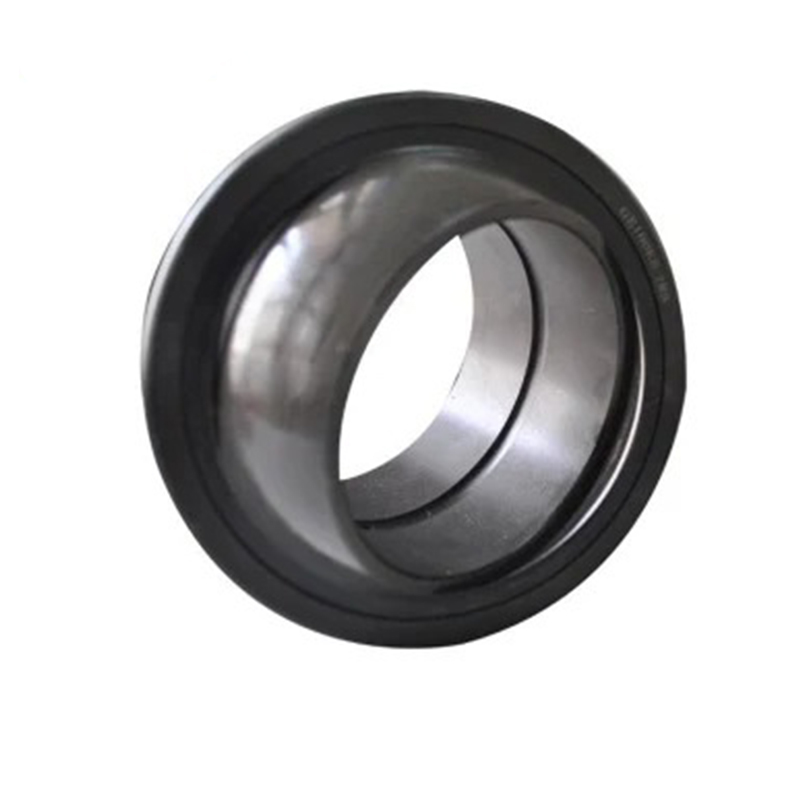

Fast Delivery GEH Series OEM Customized Chrome Steel Sphercal Plain
Joint Bearing For Machinary
Description:
The radial spherical plain bearing has an inner ring with a
spherical convex outer diameter and a corresponding spherical outer
ring with a concave inner surface. Their design makes them
particularly suitab le for bearing arrangements that must
accommodate aligning motion between the shaft and housing, or where
oscillating or repeated tilting or swivel motions must be performed
at relatively slow sliding speeds (often accompanied by heavy
loads). bearing arrangement.
Company Profile:
Shaanxi Fatego Network Technology Co., Ltd. is a professional
bearing manufacturer with more than 15 years experience, located in
Xi'an, where the world's eighth wonder terracotta warriors and
horses are located. There are 10-15 employees in R&D
department, and more than 30employees in Q&C department.We do
our best to offer high quality bearings to customers from all over
the world.
Specifications:
| Part # | Ref # | Dimensions (mm) | Weight LBS |
| | d | D | B | |
| GEH4E | GEG4E | 4 | 14 | 7 | 0.011 |
| GEH5E | GEG5E | 5 | 16 | 9 | 0.018 |
| GEH6E | GEG6E | 6 | 16 | 9 | 0.025 |
| GEH8E | GEG8E | 8 | 19 | 11 | 0.030 |
| GEH10E | GEG10E | 10 | 22 | 12 | 0.046 |
| GEH12E | GEG12E | 12 | 26 | 15 | 0.073 |
| GEH15ES | GEG15ES | 15 | 30 | 16 | 0.108 |
| GEH17ES | GEG17ES | 17 | 35 | 20 | 0.183 |
| GEH20ES | GEG20ES | 20 | 42 | 25 | 0.337 |
| GEH25ES | GEG25ES | 25 | 47 | 28 | 0.450 |
| GEH30ES | GEG30ES | 30 | 55 | 32 | 0.670 |
| GEH35ES | GEG35ES | 35 | 62 | 35 | 0.900 |
| GEH40ES | GEG40ES | 40 | 68 | 40 | 1.19 |
| GEH45ES | GEG45ES | 45 | 75 | 43 | 1.57 |
| GEH50ES | GEG50ES | 50 | 90 | 56 | 2.51 |
| GEH60ES | GEG60ES | 60 | 105 | 63 | 4.50 |
| GEH70ES | GEG70ES | 70 | 120 | 70 | 6.60 |
| GEH80ES | GEG80ES | 80 | 130 | 75 | 8.00 |
| GEH90ES | GEG90ES | 90 | 150 | 85 | 11.50 |
| GEH100ES | GEG100ES | 100 | 160 | 85 | 13.30 |
| GEH110ES | GEG110ES | 110 | 180 | 100 | 21.30 |
| GEH120ES | GEG120ES | 120 | 210 | 115 | 30.80 |
| GEH140ES | GEG140ES | 140 | 230 | 130 | 42.00 |
| GEH160ES | GEG160ES | 160 | 260 | 135 | 44.00 |
| GEH180ES | GEG180ES | 180 | 290 | 155 | 71.00 |
| GEH200ES | GEG200ES | 200 | 320 | 165 | 99.00 |
| GEH220ES | GEG220ES | 220 | 340 | 175 | 112.50 |
| GEH240ES | GEG240ES | 240 | 370 | 190 | 143.00 |
| GEH260ES | GEG260ES | 260 | 400 | 205 | 182.00 |
| GEH280ES | GEG280ES | 280 | 430 | 210 | 214.00 |
