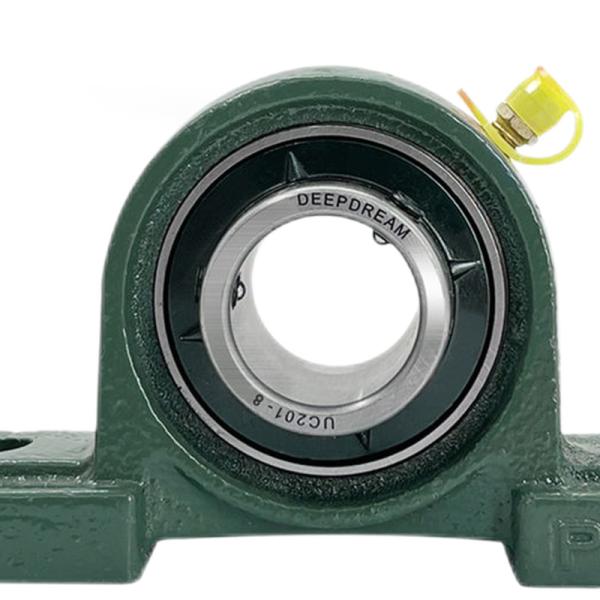

Deep Dream High Quality Inch Pillow Block Bearing UCP201 UCP201-8
UC201 Bearing Pillow Blocks
Description: of Bearing Pillow Blocks
A pillow block is a pedestal used to provide support for a rotating
shaft with the help of compatible bearings & various accessories.
Housing material for a pillow block is typically made of cast iron
or cast steel.A pillow block may contain a bearing with one of
several types of rolling elements, including ball, cylindrical
roller, spherical roller, tapered roller, or metallic or synthetic
bushing.
Specifications: of Bearing Pillow Blocks
Product Name | High quality Bearing Pillow Blocks |
Brand | Deep dream&OEM |
Model No | UCP201 |
Material | Chrome Steel, Bearing steel; GCr15; carbon steel, brass |
Sealed Type | 2RS rubber seals/ ZZ metal shields/Open |
Precision | P0 |
Clearance | C0, C2, C3, C4 |
Usage | Used for Mining, metallurgy, agriculture, chemical industry,
textile, printing and dyeing, conveying machinery. |
Bearing
Model | Shaft dia | Dimensions in mm | Weight(kg) |
| d(mm) | h | a | e | b | S2 | SI | Q | w | Bi | n | ds |
| UCP201 | 12 | 30.2 | 127 | 95 | 38 | 19 | 13 | 15 | 62 | 31 | 12.7 | MIO | 0.630 |
| UCP202 | 15 | 30.2 | 127 | 95 | 38 | 19 | 13 | 15 | 62 | 31 | 12.7 | MIO | 0.630 |
| UCP203 | 17 | 30.2 | 127 | 95 | 38 | 19 | 13 | 15 | 62 | 31 | 12.7 | MIO | 0.630 |
| UCP204 | 20 | 33.3 | 127 | 95 | 38 | 19 | 13 | 15 | 65 | 31 | 12.7 | MIO | 0.650 |
| UCP205 | 25 | 36.5 | 140 | 105 | 38 | 19 | 13 | 16 | 70 | 34 | 14.3 | MIO | 0.790 |
| UCP206 | 30 | 42.9 | 165 | 121 | 48 | 21 | 17 | 18 | 83 | 38.1 | 15.9 | M14 | 1.300 |
| UCP207 | 35 | 47.6 | 167 | 127 | 48 | 21 | 17 | 19 | 94 | 42.9 | 17.5 | M14 | 1.600 |
| UCP208 | 40 | 49.2 | 184 | 137 | 54 | 21 | 17 | 19 | 100 | 49.2 | 19 | M14 | 2.000 |
| UCP209 | 45 | 54 | 190 | 146 | 54 | 21 | 17 | 20 | 108 | 49.2 | 19 | M14 | 2.200 |
| UCP210 | 50 | 57.2 | 206 | 159 | 60 | 25 | 20 | 22 | 114 | 51.6 | 19 | M16 | 2.800 |
| UCP211 | 55 | 63.5 | 219 | 171 | 60 | 25 | 20 | 22 | 126 | 55.6 | 22.2 | M16 | 3.400 |
| UCP212 | 60 | 69.8 | 241 | 184 | 70 | 25 | 20 | 25 | 138 | 65.1 | 25.4 | M16 | 4.800 |
| UCP213 | 65 | 76.2 | 265 | 203 | 70 | 29 | 25 | 27 | 150 | 65.1 | 25.4 | M20 | 5.700 |
| UCP214 | 70 | 79.4 | 266 | 210 | 72 | 31 | 25 | 27 | 156 | 74.6 | 30.2 | M20 | 7.000 |
| UCP215 | 75 | 82.6 | 275 | 217 | 74 | 31 | 25 | 28 | 163 | 77.8 | 33.3 | M20 | 7.600 |
| UCP216 | 80 | 88.9 | 292 | 232 | 78 | 31 | 25 | 30 | 175 | 82.6 | 33.3 | M20 | 9.000 |
| UCP217 | 85 | 95.2 | 310 | 247 | 83 | 31 | 25 | 32 | 187 | 85.7 | 34.1 | M20 | 11.500 |
| UCP218 | 90 | 101.6 | 327 | 262 | 88 | 33 | 27 | 34 | 200 | 96 | 39.7 | M22 | 14.300 |
| UCP305 | 25 | 45 | 175 | 132 | 45 | 20 | 17 | 16 | 85 | 38 | 15 | M14 | 1.600 |
| UCP306 | 30 | 50 | 180 | 140 | 50 | 20 | 17 | 19 | 95 | 43 | 17 | M14 | 2.100 |
1. High speed, High Precision, Low Noise, Long Service Life
2. Widely used
3. Large Inventories
4. High Quality and Competitive Prices
5. Various Brands
6. OEM is supported
Applications:
Papermaking machinery, speed reducer, railway vehicle axle, gear
box bearing, rolling mill rolling mill rolls, crusher, vibrating
screen, printing machinery, woodworking machinery, all kinds of
industry.
