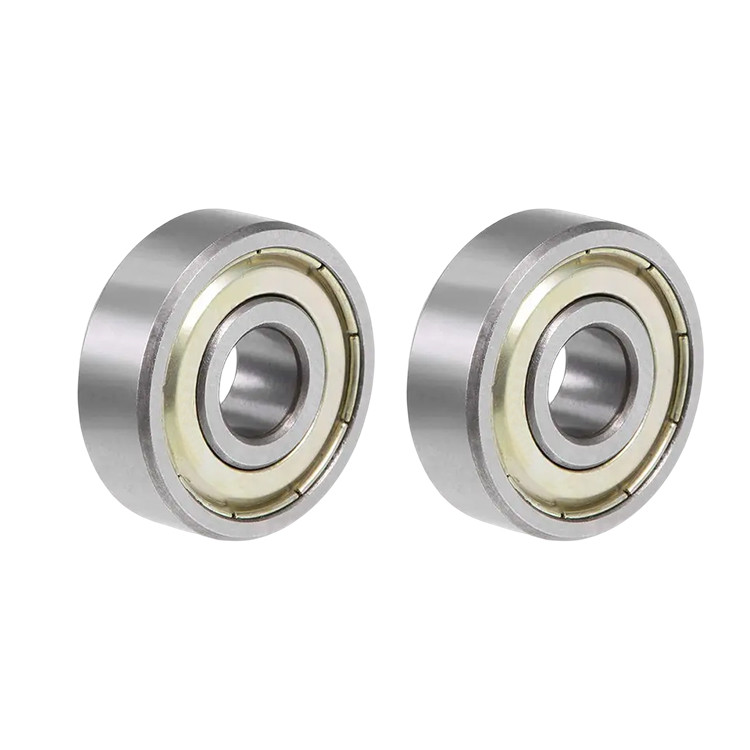

High Speed 623zz Miniature Deep Groove Ball Bearings For Toy Models
Description: of Deep Groove Ball Bearing 623
Our precision deep groove ball bearings are designed for high
precision, low noise, small vibration, high reliability and long
life. They are mostly used in various types of electric motors.
They are also known as EMQ (Electric Motor Quality) bearings.
Bearings are widely used in household appliances, toys, electric
power tools, car motors and other fields. With optimal design, high
reliability heat treatment, precision manufacturing processes and
high-grade grease, these products perform better on reliability,
Hanvibration and Standard products making them more suitable for
electric motor applications. These products can also be applied to
most gearbox applications as well.
Specifications: of Deep Groove Ball Bearing 623
Product Name | High Speed 623zz Miniature Deep Groove Ball Bearings For Toy Models |
Brand | OEM |
Model No | 623 |
Sizes(mm)1 | 10*4*4mm |
Material | Chrome steel, Gcr15 |
Sealed Type | ZZ (Steel Shield) 2RS (Rubber Seal) |
Precision | P0,P6,P5 |
Clearance | C0 C2 C3 C4 |
Features | High Temperature Resistance,low noise, long life |
内径 (D) | 外径 (D) | 高 | 度 | 倒角(r) | 基本 动负荷 CrtNIBasic Dynamic | 基本 静负荷 CorlN)Bask Static | .扱.限转速 Limiting Speed | 型号 Reference | |||
开放型 (B) Open | 防尘盖型 (B1 ) Shield | 开放员 Open | 防尘蓋型 Shield | 润滑脂 Grase | 润滑剤 Oil | 开放型 Open | 防尘盖型 Shield | ||||
,100( | Irpm | ||||||||||
3 | 1 | - | 0.05 | — | 80 | 23 | 130 | 150 | 681 | — | |
1 | 3 | 1.5 | - | 0.05 | - | - | |||||
4 | 1.6 | - | 0.1 | — | 140 | 36 | 100 | 120 | 691 | — | |
4 | 1.2 | 2 | 0.05 | 0.05 | 112 | 33 | 100 | 120 | 681X | 681XZZ | |
1.5 | 5 | 2 | 2.6 | 0.15 | 0.15 | 237 | 69 | 85 | 100 | 691X | 691Xzz |
6 | 2.5 | 3 | 0.15 | 0.15 | 330 | 98 | 75 | 90 | 601X | 601 Xzz | |
5 | 1.5 | 2.3 | 0.08 | 0.08 | 169 | 50 | 85 | 100 | 682 | 682zz | |
5 | 2 | 2.5 | 0.1 | 0.1 | 169 | 50 | 85 | 100 | MR52 | MR52zz | |
6 | 2.3 | 3 | 0.15 | 0.15 | 330 | 98 | 75 | 90 | 692 | 692zz | |
d | 6 | 2.5 | 2.5 | 0.15 | 0.15 | 330 | 98 | 75 | 90 | MR62 | MR62zz |
7 | 2.5 | 3 | 0.15 | 0.15 | 385 | 127 | 63 | 75 | MR72 | MR72zz | |
7 | 2.8 | 3.5 | 0.15 | 0.15 | 385 | 127 | 63 | 75 | 602 | 602zz | |
6 | 1.8 | 2.6 | 0.08 | 0.08 | 208 | 74 | 71 | 80 | 682X | 682Xzz | |
2.5 | 7 | 2.5 | 3.5 | 0.15 | 0.15 | 385 | 127 | 63 | 75 | 692X | 692Xzz |
8 | 2.5 | - | 0.2 | — | 560 | 179 | 60 | 67 | MR82X | — | |
8 | 2.8 | 4 | 0.15 | 0.15 | 550 | 175 | 60 | 71 | 602X | 602XZZ | |
6 | 2 | 2.5 | 0.1 | 0.1 | 208 | 74 | 71 | 80 | MR63 | MR63zz | |
7 | 2 | 3 | 0.1 | 0.1 | 310 | 111 | 63 | 75 | 683 | 683zz | |
8 | 2.5 | - | 0.15 | - | 560 | 179 | 60 | 67 | MR83 | MR83zz | |
8 | 3 | 4 | 0.15 | 0.15 | 560 | 179 | 60 | 67 | 693 | 693zz | |
3 | 9 | 2.5 | 4 | 0.2 | 0.2 | 570 | 187 | 56 | 67 | MR93 | MR93ZZ |
9 | 3 | - | 0.15 | - | 570 | 187 | 56 | 67 | 603 | 603zz | |
10 | 4 | 4 | 0.15 | 0.15 | 630 | 218 | 50 | 60 | 623 | 623zz | |
13 | 5 | 5 | 0.2 | 0.2 | 1300 | 405 | 40 | 48 | 633 | 633zz | |
7 | 2 | 2.5 | 0.1 | 0.1 | 310 | 115 | 60 | 67 | MR74 | MR74ZZ | |
8 | 2 | 3 | 0.15 | 0.15 | 395 | 139 | 56 | 67 | MR84 | MR84zz | |
9 | 2.5 | 4 | 0.1 | 0.1 | 640 | 225 | 53 | 63 | 684 | 684zz | |
10 | 3 | 4 | 0.2 | 0.2 | 585 | 204 | 48 | 56 | MR104 | MR104ZZ | |
4 | 11 | 4 | 4 | 0.15 | 0.15 | 960 | 345 | 48 | 56 | 694 | 694zz |
12 | 4 | 4 | 0.2 | 0.2 | 960 | 345 | 48 | 56 | 604 | 604zz | |
13 | 5 | 5 | 0.2 | 0.2 | 1300 | 485 | 40 | 48 | 624 | 624zz | |
16 | 5 | 5 | 0.3 | 0.3 | 1730 | 670 | 36 | 43 | 634 | 634zz |
Advantage:
Our Services:
1.We can offer a various kind of bearing with top quality.
2.Promptness in technical support pre- and after sales.
3.We can supply the samples (some for free).
4. OEM for our customers.
5.Prompt delivery time.
Applications:
Examples include gyroscopes, anemometers, flow meters, micro-gearboxes, small motors, and radio-controlled models.
